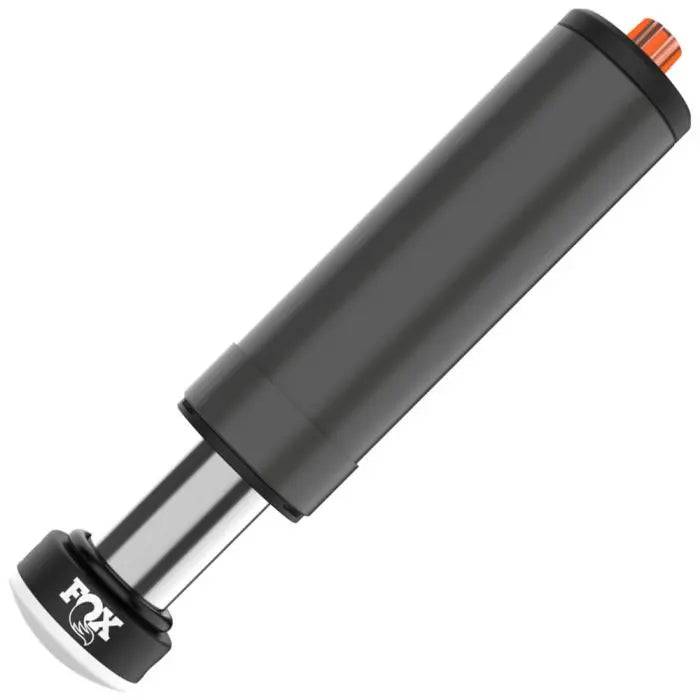

Fox's all-new Factory Race Series 2.0 bump stops were developed specifically for off-road racing to provide precise control of the last few inches of suspension travel and prevent harsh bottoming while delivering unprecedented levels of performance and durability.
New Features:
- Dual coated steel body with proprietary FOX Grey Cerakote® protective ceramic coating over zinc plated basecoat
- Hard anodized 6061-T6 billet aluminum bump stop specific low flow race piston
- PTFE coated bronze impregnated steel piston wearband

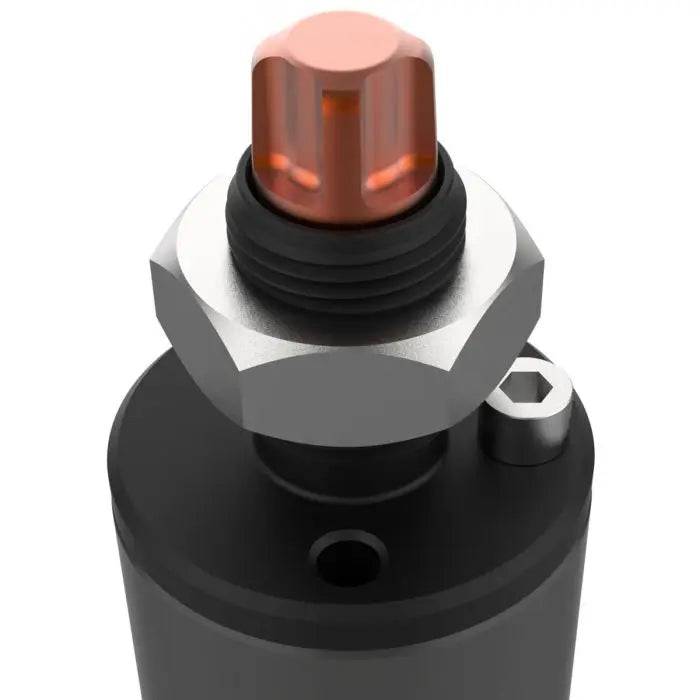

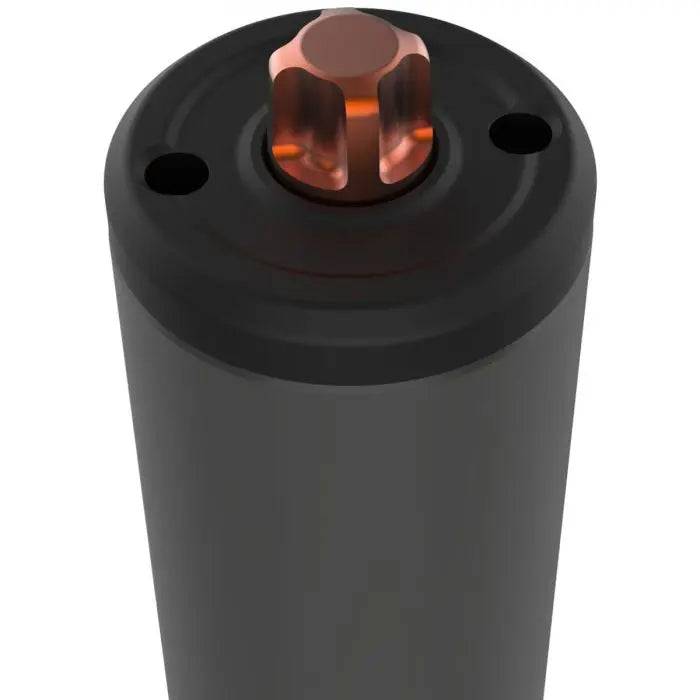

- Orange anodized billet aluminum FAV cap

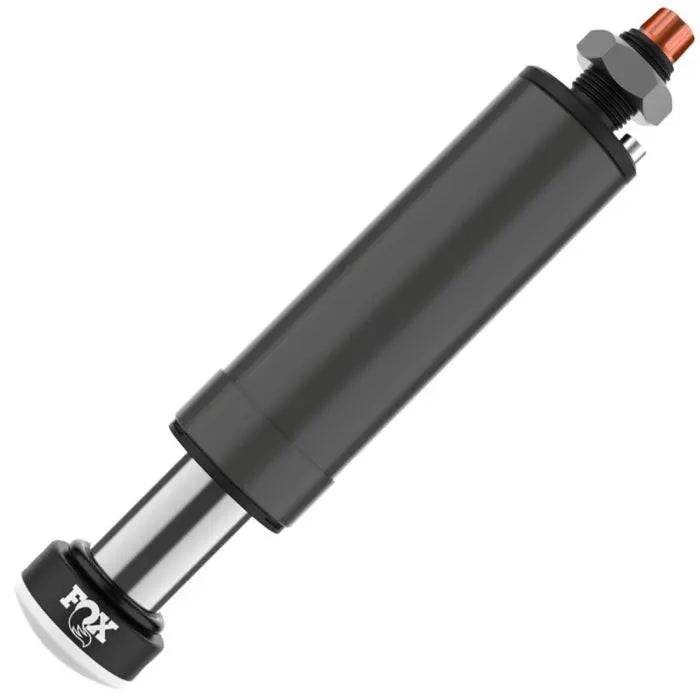

- Stem mount option
Carryover Features:
- 1-1/4" hard chrome plated 4130 chromoly steel shafts
- Stainless steel FOX Air Valve (FAV)
- Replaceable strike pad
| Travel |
Top Mount |
Shaft Size |
Compressed |
Extended |
| 2.04" |
Pinch |
1-1/4"
|
7.7" |
9.74" |
| 2.54" |
Pinch |
1-1/4" |
8.9" |
9.74" |
| 3.04 |
Pinch |
1-1/4" |
10.15" |
13.19" |
| 4.04" |
Pinch |
1-1/4" |
10.15" |
14.19" |
| 2.04" |
Stem |
1-1/4" |
7.58" |
9.61" |
