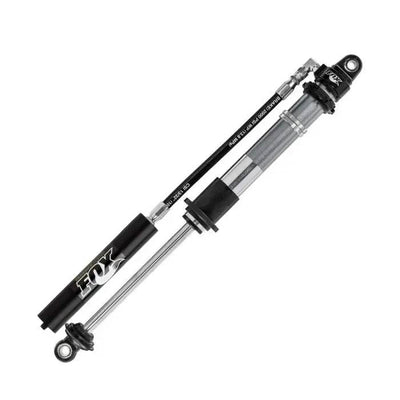

Fox 2.0 Factory Race Series Coil-Over Remote Reservoir Shock - 7/8" Shaft
Fox 2.0 Factory Race Series Coil-Over Remote Reservoir Shock - 7/8" Shaft
Fox 2.0 Factory Race Series Coil-Over Remote Reservoir Shock - 7/8" Shaft
Fox 2.0 Factory Race Series Coil-Over Remote Reservoir Shock - 7/8" Shaft
Fox 2.0 Factory Race Series Coil-Over Remote Reservoir Shock - 7/8" Shaft

Fox 2.0 Factory Race Series Coil-Over Remote Reservoir Shock - 7/8" Shaft

Sale price$559.95
/
Shipping calculated at checkout.

Fox's Factory Race Series coil-over shocks are the foundation of a race-winning suspension. They epitomize efficiency by combining our race-proven damping technology with a means to suspend the vehicle in one easy-to-mount assembly.

Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our coil-overs will give you the damping performance, suspension control and proper spring rate to get the job done. They come in several rock-solid configurations that will fit your application perfectly.

Shock Family Features:

  • Body - Smooth bore and honed seamless steel
  • Body Plating - Zinc plated and clear coated for a long lasting finish
  • Components - Black anodized, CNC machined 6061-T6 billet aluminum
  • Valving - Tunable, velocity sensitive deburred valve shims
  • Hose - Stainless Steel braided -8 hose for improved durability features high flow crimped fittings
  • Seals - Redundant sealing pack system with main seal, wiper seal and scraper seal
  • Oil - JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • Shafts - 7/8" 17-4 H900 hard chrome plated stainless steel
  • Bearing - Spherical -8 series, PFTE-lined, heat-treated alloy steel

All coil-over shocks come with required spring hardware, including lower spring retainer, upper preload adjuster, preload lock ring, spring slider/divider, and dual rate cross over rings.

Each shock includes 2 rubber reservoir mounting blocks and 2 stainless steel worm drive hose clamps. Typical mounting locations for the reservoir include to the body of the shock or to cage tubework

  • 1.25" mounting width with 1/2" bolt
  • Fox 50/70 valving

Uses 2.5" ID springs (Sold separately)
Sold Individually, not as a pair or set

No DSC Adjuster:

 Travel Shaft Size Compressed Extended Reservoir Size Reservoir Hose Length
10 7/8" 16.1 26.1 2.0x11.0 14"
12 7/8" 19.1 31.1 2.0x11.0 14"
14 7/8" 21.1 35.1 2.0x11.0 14"
16 7/8" 24.1 40.1 2.0x11.0 14"
18 7/8" 26.1 44.1 2.0x11.0 14"


Yes DSC Adjuster:

 Travel Shaft Size Compressed Extended Reservoir Size Reservoir Hose Length
10 7/8" 16.1 26.1 2.5x10" 17.75"
12 7/8" 19.1 31.1 2.5x10" 17.75"
14 7/8" 21.1 35.1 2.5x10" 17.75"
16 7/8" 24.1 40.1 2.5x10" 17.75"
18 7/8" 26.1 44.1 2.5x10" 17.75"

    Rotating, -10 Heims

     Travel Shaft Size Compressed Extended Reservoir Size Reservoir Hose Length
    10 7/8" 16.18 26.15 2.0x11.0 17.75"
    12 7/8" 19.18 31.15 2.0x11.0 17.75"
    14 7/8" 21.18 35.15 2.0x11.0 17.75"
    16 7/8" 24.18 40.15 2.0x11.0 17.75"
    18 7/8" 26.18 44.15 2.0x11.0 17.75"
