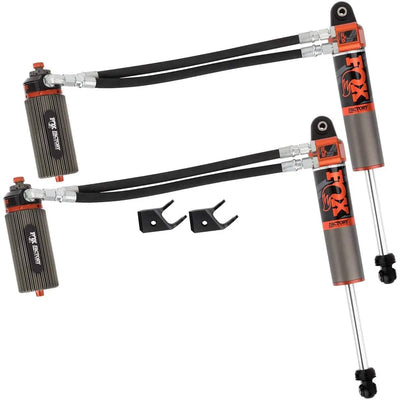

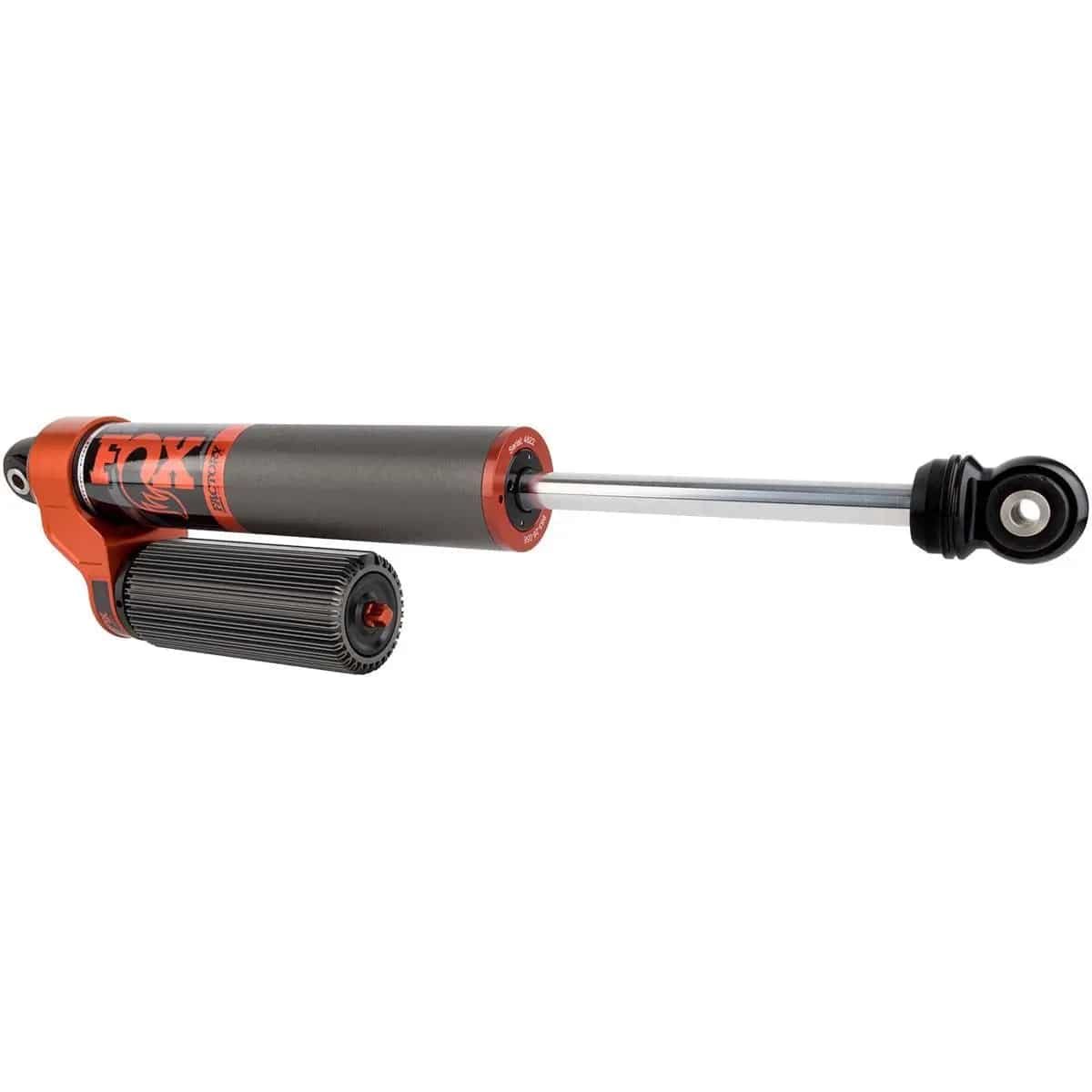

The Factory Race Series 3.0 Internal Bypass shock delivers patented race-dominating position sensitive damping technology and performance in a hassle free bolt-on kit. Patented, position sensitive internal bypass technology contains internal passages that allow fluid to bypass the piston through regulated ports as it moves through the travel. They allow for a plush predictable ride over normal off-road driving conditions and also have the ability to ramp up damping force for extreme use.

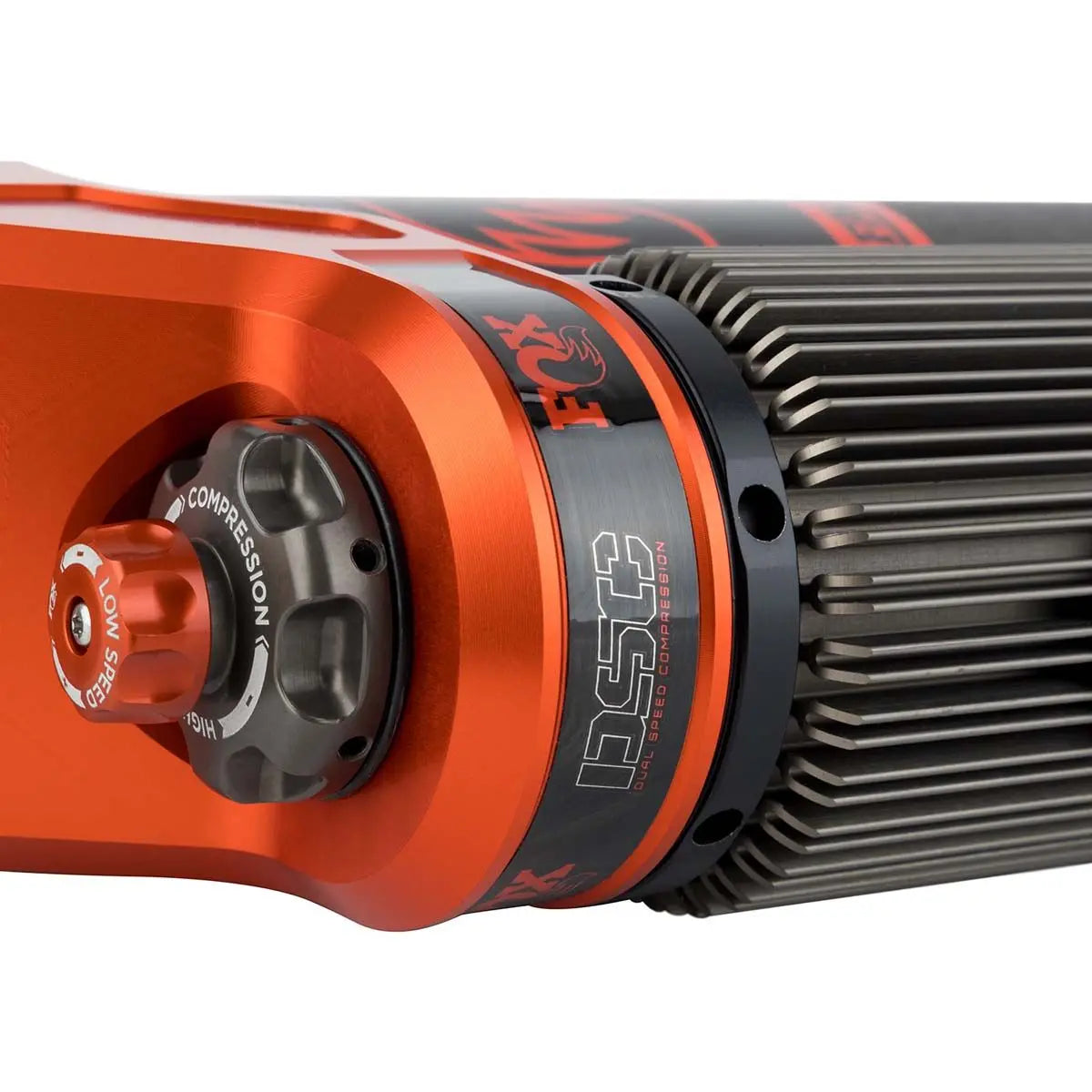

DUAL SPEED COMPRESSION (DSC) ADJUSTER
Add remarkable versatility and precise tuning with FOX's DSC adjuster. A simple twist of either two adjuster knobs allows 10 separate low-speed and 12 high-speed compression levels. Included new anodized finned aluminum reservoir increases cooling efficiency.

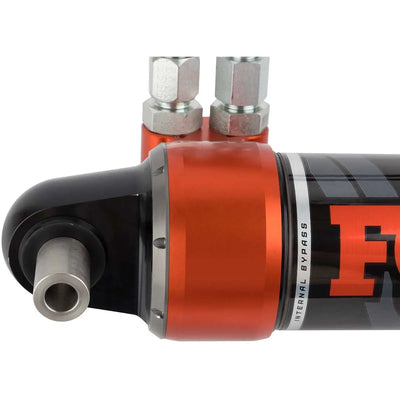

RECIRCULATING RESERVOIR
To increase efficiency and cooling capacity, a new recirculating reservoir bridge was developed and mated to the race proven finned aluminum reservoir. These facilitate heat dissipation and help resist shock fade. The system more efficiently circulates fluid, greatly improving cooling when compared to a conventional reservoir.
Features:
-
Body - 3.0" Hard anodized aluminum
-
Reservoir - NEW, hard anodized extruded aluminum finned remote reservoir with NEW Recirculating Reservoir Bridge
-
Components - Hard anodized, CNC-machined 6061-T6 billet aluminum
-
Piston - Hard anodized 6061-T6 billet aluminum high flow race piston
-
Valving - Specific for Jeep JL to maximize performance and comfort
-
Oil - JM92 Advanced Suspension Fluid
-
Mounting - Quiet nitrile rubber allows for increased suspension articulation Adjustments
| Lift Height |
Location |
Travel |
Compressed |
Extended |
| 2-3" |
Front |
8.84" |
17.96" |
26.8" |
| 2-3" |
Rear |
9.79" |
18.93" |
28.72" |
| 3.5-4.5" |
Front |
10.72" |
16.98" |
27.7" |
| 3.5-4.5" |
Rear |
10.85" |
18.93" |
29.78" |
